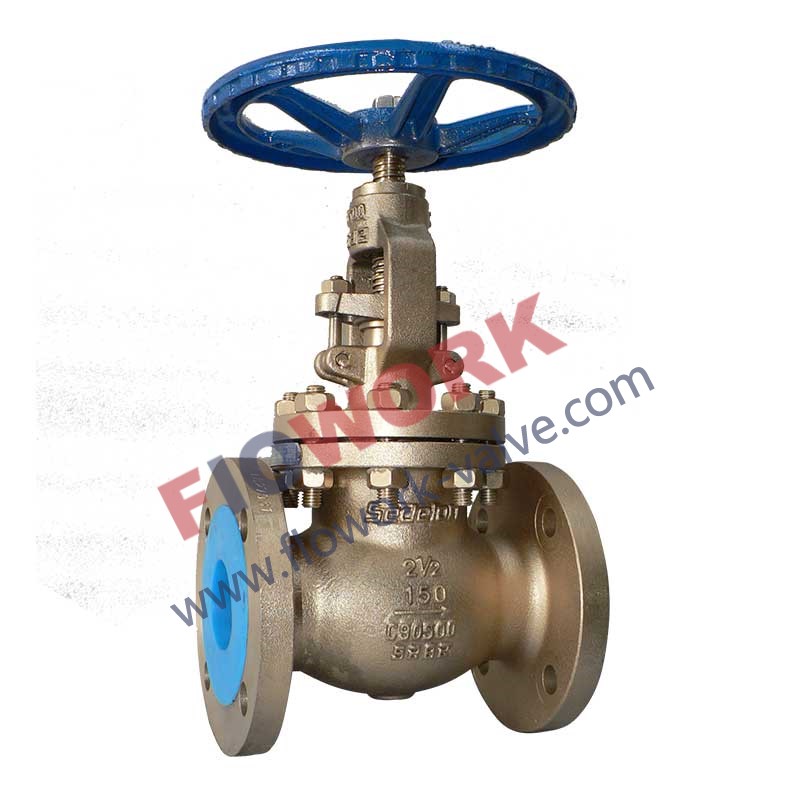

Bronze Globe valve

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.FLOWORK manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

FLOWORK® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, FLOWORK® provides you DIN Bronze valves as well for example, DIN Bronze Globe valves.

The characteristics of the FLOWORK Bronze valves are of corrosion resistance , oxidation resistance electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.

Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded DimensionsANSI B16.25

Design and ManufactureBS1873

Pressure TestAPI598

MaterialsC95800C95500C95200C95300C95600C61900C63200,ect.

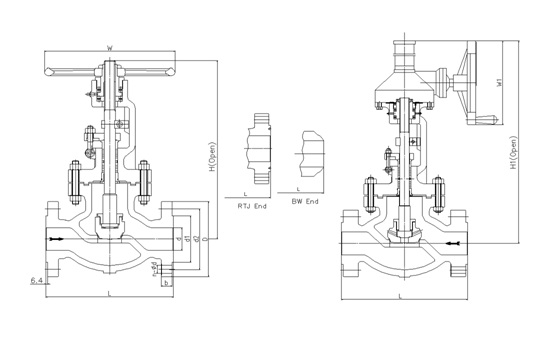

Class150  BronzeGLOBE Valve


NPS

in

2

2 1/2

3

4

5

6

8

10

12

d

mm

51

64

76

102

127

152

203

254

305

L(RF)

mm

203

216

241

292

356

406

495

622

698

L(BW)

mm

203

216

241

292

356

406

495

622

698

L(RTJ)

mm

216

229

254

305

369

419

508

635

711

d1

mm

92

105

127

157

186

216

270

324

381

d2

mm

120.5

139.5

152.5

190.5

216

241.5

298.5

362

432

D

mm

152

178

190

229

254

279

343

406

483

b

mm

16

18

19

24

24

26

29

31

32

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

8-22

12-25

12-25

H

mm

330

360

390

445

480

520

600

773

880

H1

mm











556

658

805

955

W

mm

200

200

250

300

350

350

500

500

550

W1

mm











310

310

460

460

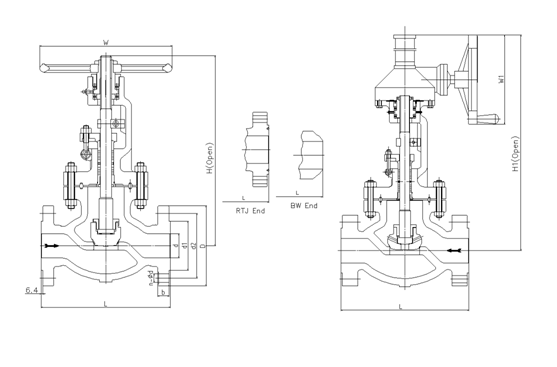

Class300  Bronze GLOBE Valve


NPS

in

2

2 1/2

3

4

5

6

8

10

12

d

mm

51

64

76

102

127

152

203

254

305

L(RF)

mm

267

292

318

356

400

444

559

622

711

L(BW)

mm

267

292

318

356

400

444

559

622

711

L(RTJ)

mm

283

308

333

371

416

460

575

638

727

d1

mm

92

105

127

157

186

216

270

324

381

d2

mm

127

149

168.5

200

235

270

330

387.5

451

D

mm

165

190

210

254

279

318

381

445

521

b

mm

23

26

29

32

35

37

42

48

51

n-Фd

mm

8-19

8-22

8-22

8-22

8-22

12-22

12-25

16-29

16-32

H

mm

385

420

440

515

580

660

900

950

1030

H1

mm











690

950

990

1080

W

mm

250

250

300

350

450

500

500

550

550

W1

mm











310

460

460

460

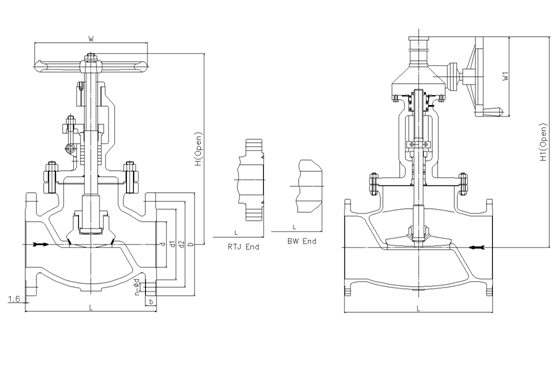

Class600  BronzeGLOBE Valve


NPS

in

2

2 1/2

3

4

5

6

8

10

12

d

mm

51

64

76

102

127

152

200

248

298

L(RF)

mm

292

330

356

432

508

559

660

787

838

L(BW)

mm

292

330

356

432

508

559

660

787

838

L(RTJ)

mm

295

333

359

435

511

562

664

791

841

d1

mm

92

105

127

157

186

216

270

324

381

d2

mm

127

149

168.5

216

267

292

349

432

489

D

mm

165

190

210

273

330

356

419

508

559

b

mm

26

29

32

38

45

48

56

64

67

n-Фd

mm

8-19

8-22

8-22

8-25

8-29

12-29

12-32

16-35

20-35

H

mm

360

410

465

545

625

785

930





H1

mm







575

660

820

960

1040

1280

W

mm

250

300

350

400

500

550

650





W1

mm







310

310

460

460

610

610

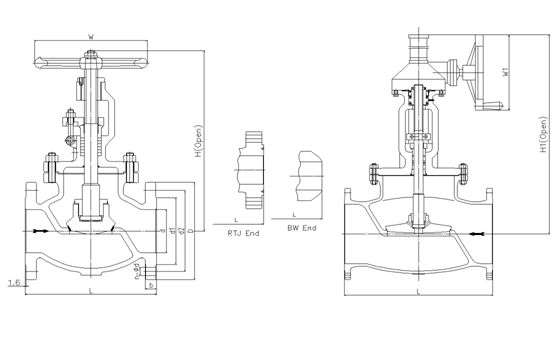

Class900  BronzeGLOBE Valve


NPS

in

2

2 1/2

3

4

5

6

8

10

d

mm

47

57

73

98

121

146

190

234

L(RF)

mm

368

419

381

457

559

610

737

838

L(BW)

mm

368

419

381

457

559

610

737

838

L(RTJ)

mm

371

422

384

460

562

613

740

841

d1

mm

92

105

127

157

186

216

270

324

d2

mm

165

190.5

190.5

235

279.4

317.5

393.7

469.9

D

mm

216

244

241

292

349

381

470

545

b

mm

38.5

41.5

38.5

44.5

51

56

64

70

n-Фd

mm

8-26

8-29

8-26

8-32

8-35

12-32

12-39

16-39

H

mm

480

520

564

685

780

950





H1

mm





630

720

840

1015

1100

1185

W

mm

350

350

400

450

550

650





W1

mm





310

310

460

460

610

610
