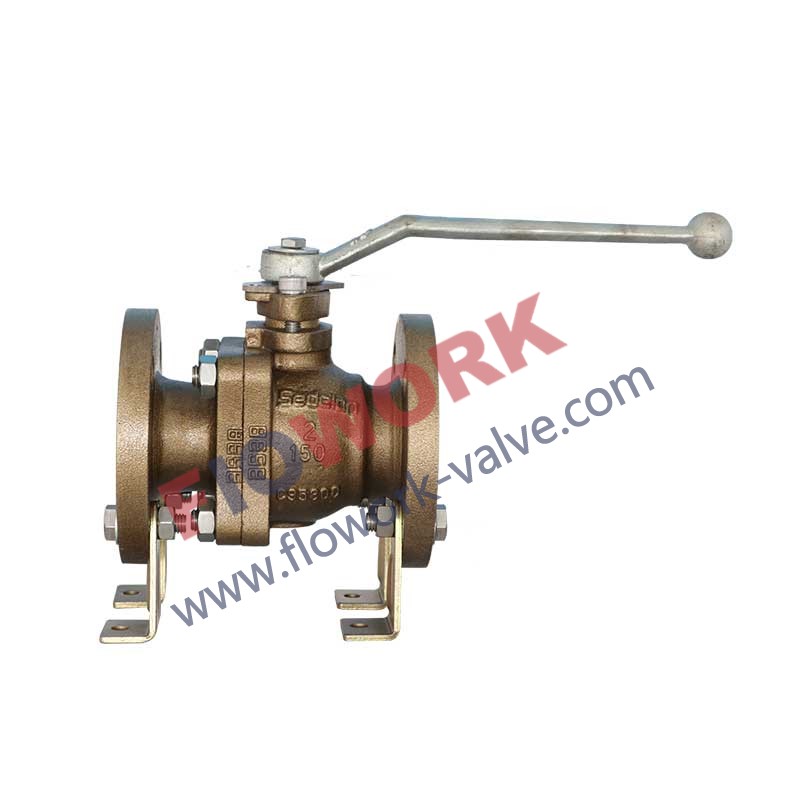

Bronze ball valve

Bronze ball valve

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.FLOWORK manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.FLOWORK manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

FLOWORK® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, FLOWORK® provides you DIN Bronze valves as well for example, DIN Bronze Globe valves.

The characteristics of the FLOWORK Bronze valves are of corrosion resistance , oxidation resistance  electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.

   Bronze Ball valves are excellent choices for opening and shut-off, especially meet the requirements for subsea applications.

Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded DimensionsANSI B16.25

Design and ManufactureAPI 6D

Pressure TestAPI598

MaterialsC95800C95500C95200C95300C95600C61900C63200,ect.

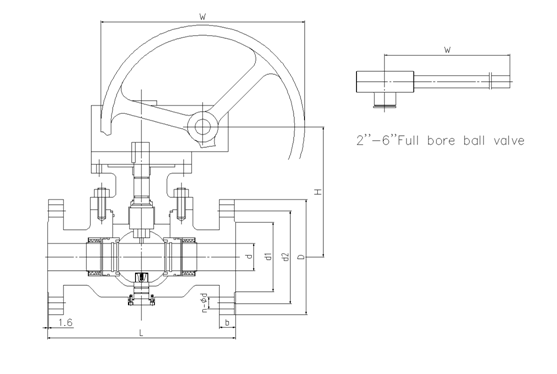

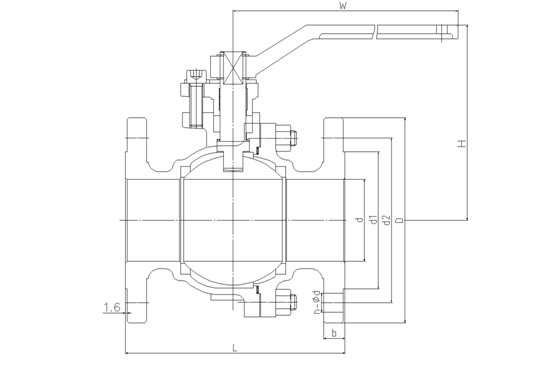

Class150  BronzeFloating  Ball  Valve




NPS

in

2

2 1/2

3

4

5

6

8

10

d

mm

51

64

76

102

127

152

203

254

L(RF)

mm

178

190

203

229

356

394

457

533

d1

mm

92

105

127

157

186

216

270

324

d2

mm

120.5

139.5

152.5

190.5

216

241.5

298.5

362

D

mm

152

178

190

229

254

279

343

406

b

mm

16

18

19

24

24

26

29

31

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

8-22

12-25

H

mm

110

130

150

180

220

270

340

350

W

mm

200

290

290

360

600

800

1000

1200

Class300 BronzeFloating  Ball  Valve



NPS

in

2

2 1/2

3

4

5

6

8

d

mm

51

64

76

102

127

152

203

L(RF)

mm

216

241

283

305

381

403

502

d1

mm

92

105

127

157

186

216

270

d2

mm

127

149

168.5

200

235

270

330

D

mm

165

190

210

254

279

318

381

b

mm

23

26

29

32

35

37

42

n-Фd

mm

8-19

8-22

8-22

8-22

8-22

12-22

12-25

H

mm

140

160

180

208

220

290

300

W

mm

200

290

290

360

600

800

1000

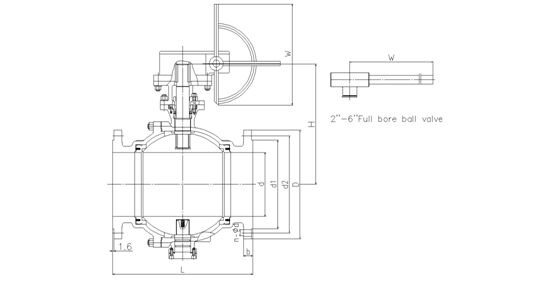

Class150  BronzeFixed  Ball  Valve

NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

438

489

591

L(RF)

mm

178

190

203

229

394

457

533

610

686

762

864

914

1016

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

120.5

139.5

152.5

190.5

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

178

190

229

279

343

406

483

533

597

635

699

813

b

mm

16

18

19

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

Class300 BronzeFixedBall  Valve

NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

432

483

584

L(RF)

mm

216

241

283

305

403

502

568

648

762

838

914

991

1143

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

200

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

165

190

210

254

318

381

445

521

584

648

711

775

914

b

mm

23

26

29

32

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-19

8-22

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

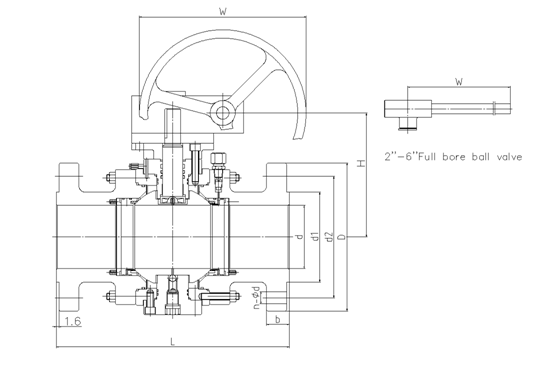

 Class600  BronzeFixed ball valve  Ball  Valve



NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

76

102

127

152

200

248

298

327

375

419

464

559

L(RF)

mm

292

356

432

508

559

660

787

838

889

991

1092

1194

1397

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

168.5

216

267

292

349

432

489

527

603

654

724

838

D

mm

165

210

273

330

356

419

508

559

603

686

743

813

940

b

mm

26

32

38

45

48

56

64

67

70

77

83

89

102

n-Фd

mm

8-19

8-22

8-25

8-29

12-29

12-32

16-35

20-35

20-38

20-41

20-44

24-44

24-52

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

1500

500

500

500

500

500

500

500

500

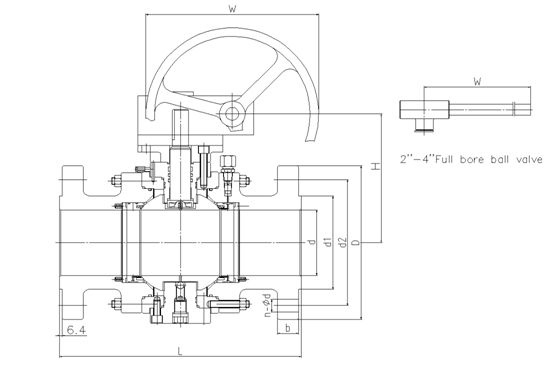

 Class900 BronzeFixed Ball  Valve

NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

47

73

98

121

146

190

234

282

311

354

400

444

533

L(RF)

mm

368

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(RTJ)

mm

371

384

460

562

613

740

841

968

1039

1140

1232

1334

1568

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

165

190.5

235

279.4

317.5

393.7

469.9

533.4

558.8

615.9

685.8

749.3

901.7

D

mm

216

241

292

349

381

470

545

610

640

705

785

855

1040

b

mm

38.5

38.5

44.5

51

56

64

70

79.5

86

89

102

108

140

n-Фd

mm

8-26

8-26

8-32

8-35

12-32

12-39

16-39

20-39

20-42

20-45

20-51

20-54

20-67

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

500

500

500

500

500

500

500

500

500

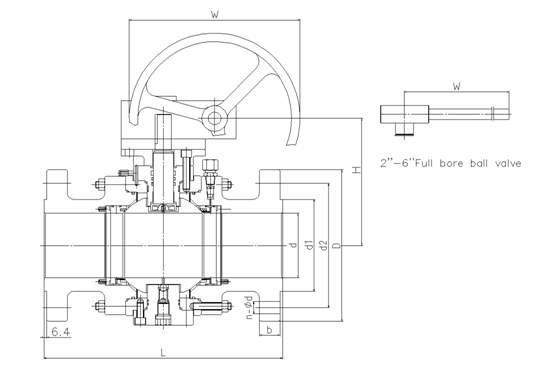

Class150 BronzeForged  Ball  Valve




NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

438

489

591

L(RF)

mm

178

190

203

229

394

457

533

610

686

762

864

914

1016

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

120.5

139.5

152.5

190.5

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

178

190

229

279

343

406

483

533

597

635

699

813

b

mm

16

18

19

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

Class300  BronzeForged  Ball  Valve

NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

432

483

584

L(RF)

mm

216

241

283

305

403

502

568

648

762

838

914

991

1143

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

200

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

165

190

210

254

318

381

445

521

584

648

711

775

914

b

mm

23

26

29

32

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-19

8-22

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

Class600  BronzeForged  Ball  Valve

NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

76

102

127

152

200

248

298

327

375

419

464

559

L(RF)

mm

292

356

432

508

559

660

787

838

889

991

1092

1194

1397

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

168.5

216

267

292

349

432

489

527

603

654

724

838

D

mm

165

210

273

330

356

419

508

559

603

686

743

813

940

b

mm

26

32

38

45

48

56

64

67

70

77

83

89

102

n-Фd

mm

8-19

8-22

8-25

8-29

12-29

12-32

16-35

20-35

20-38

20-41

20-44

24-44

24-52

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

1500

500

500

500

500

500

500

500

500

Class900 BronzeForged  Ball  Valve

NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

47

73

98

121

146

190

234

282

311

354

400

444

533

L(RF)

mm

368

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(RTJ)

mm

371

384

460

562

613

740

841

968

1039

1140

1232

1334

1568

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

165

190.5

235

279.4

317.5

393.7

469.9

533.4

558.8

615.9

685.8

749.3

901.7

D

mm

216

241

292

349

381

470

545

610

640

705

785

855

1040

b

mm

38.5

38.5

44.5

51

56

64

70

79.5

86

89

102

108

140

n-Фd

mm

8-26

8-26

8-32

8-35

12-32

12-39

16-39

20-39

20-42

20-45

20-51

20-54

20-67

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

500

500

500

500

500

500

500

500

500

Class150   BronzeTop  Entry  Ball  Valve

NPS

in

6

8

10

12

14

16

18

20

24

d

mm

152

203

254

305

337

387

438

489

591

L(RF)

mm

394

457

533

610

686

762

864

914

1016

d1

mm

216

270

324

381

413

470

533

584

692

d2

mm

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

279

343

406

483

533

597

635

699

813

b

mm

26

29

31

32

35

37

40

43

48

n-Фd

mm

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

330

448

505

556

620

700

750

805

1110

W

mm

1000

300

350

400

500

500

500

500

500

Class300   BronzeTop  Entry  Ball  Valve

NPS

in

6

8

10

12

14

16

18

20

24

d

mm

152

203

254

305

337

387

432

483

584

L(RF)

mm

403

502

568

648

762

838

914

991

1143

d1

mm

216

270

324

381

413

470

533

584

692

d2

mm

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

318

381

445

521

584

648

711

775

914

b

mm

37

42

48

51

54

58

61

64

70

n-Фd

mm

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

330

448

505

556

620

700

750

805

1110

W

mm

1000

300

350

400

500

500

500

500

500




Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.

Related products
