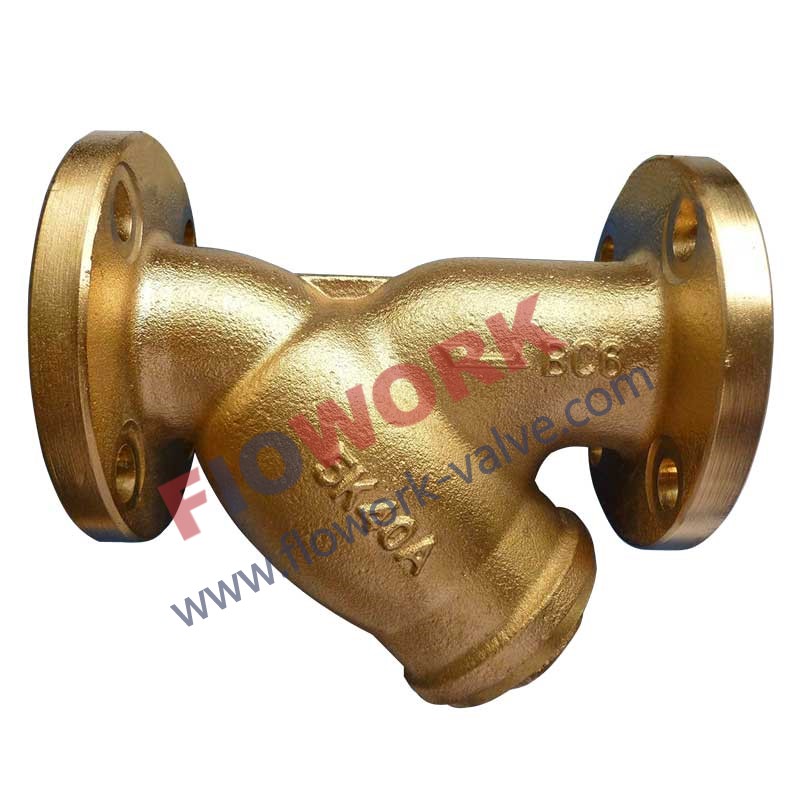

Bronze Strainer Valve

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.FLOWORK manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.FLOWORK manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

FLOWORK® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, FLOWORK® provides you DIN Bronze valves as well for example, DIN Bronze Strainer valves.

The characteristics of the FLOWORK Bronze valves are of corrosion resistance , oxidation resistance electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.

Application

Face to Face Dimensions: ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded DimensionsANSI B16.25

Design and ManufactureANSI B16.34

Pressure TestAPI 598

MaterialsC95800C95500C95200C95300C95600C61900C63200,ect.

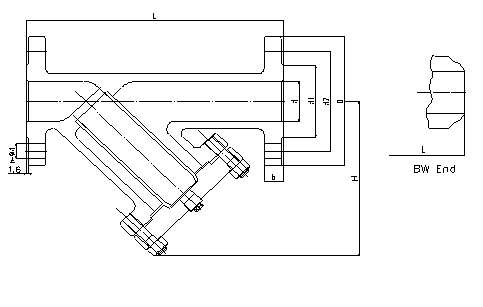

Class150   BronzeY-Type Strainer Valve


NPS

in

1/2

3/4

1

11/2

2

2 1/2

3

4

6

8

10

12

d

mm

13

19

25

38

51

64

76

102

152

203

254

305

L(RF)

mm

140

152

165

203

229

279

318

368

470

597

673

775

L(BW)

mm

140

152

165

203

229

279

318

368

470

597

673

775

d1

mm

35

43

51

73

92

105

127

157

216

270

324

381

d2

mm

60.5

70

79.5

98.5

120.5

139.5

152.5

190.5

241.5

298.5

362

432

D

mm

89

98

108

127

152

178

190

229

279

343

406

483

b

mm

11

12

12

15

16

18

19

24

26

29

31

32

n-Фd

mm

4-16

4-16

4-16

4-16

4-19

4-19

4-19

8-19

8-22

8-22

12-25

12-25

H

mm

87

105

114

156

180

260

293

324

448

535

690

780

Class300   BronzeY-Type Strainer Valve

NPS

in

1/2

3/4

1

11/2

2

2 1/2

3

4

6

8

10

12

d

mm

13

19

25

38

51

64

76

102

152

203

254

305

L(RF)

mm

140

152

165

203

229

279

318

368

470

597

673

775

L(BW)

mm

140

152

165

203

229

279

318

368

470

597

673

775

d1

mm

35

43

51

73

92

105

127

157

216

270

324

381

d2

mm

66.5

82.5

89

114.5

127

149

168.5

200

270

330

387.5

451

D

mm

95

117

124

156

165

190

210

254

318

381

445

521

b

mm

15

16

18

21

23

26

29

32

37

42

48

51

n-Фd

mm

4-16

4-19

4-19

4-22

8-19

8-22

8-22

8-22

12-22

12-25

16-29

16-32

H

mm

87

105

114

156

180

260

293

324

448

535

690

780

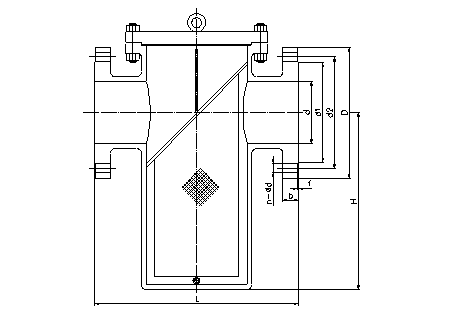

Class150   BronzeT-TypeStrainer Valve

NPS

in

1

11/2

2

2 1/2

3

4

6

8

10

12

d

mm

25

38

51

64

76

102

152

203

254

305

L(RF)

mm

180

260

260

330

340

400

500

560

660

750

d1

mm

51

73

92

105

127

157

216

270

324

381

d2

mm

79.5

98.5

120.5

139.5

152.5

190.5

241.5

298.5

362

432

D

mm

108

127

152

178

190

229

279

343

406

483

b

mm

12

15

16

18

19

24

26

29

31

32

n-Фd

mm

4-16

4-16

4-19

4-19

4-19

8-19

8-22

8-22

12-25

12-25

H

mm

165

175

175

210

255

300

425

525

600

680

Class300   BronzeT-ypeStrainer Valve


NPS

in

1

11/2

2

2 1/2

3

4

6

8

10

12

d

mm

25

38

51

64

76

102

152

203

254

305

L(RF)

mm

180

260

260

330

340

400

500

560

660

750

d1

mm

51

73

92

105

127

157

216

270

324

381

d2

mm

89

114.5

127

149

168.5

200

270

330

387.5

451

D

mm

124

156

165

190

210

254

318

381

445

521

b

mm

18

21

23

26

29

32

37

42

48

51

n-Фd

mm

4-19

4-22

8-19

8-22

8-22

8-22

12-22

12-25

16-29

16-32

H

mm

165

175

175

210

255

300

425

525

600

680
