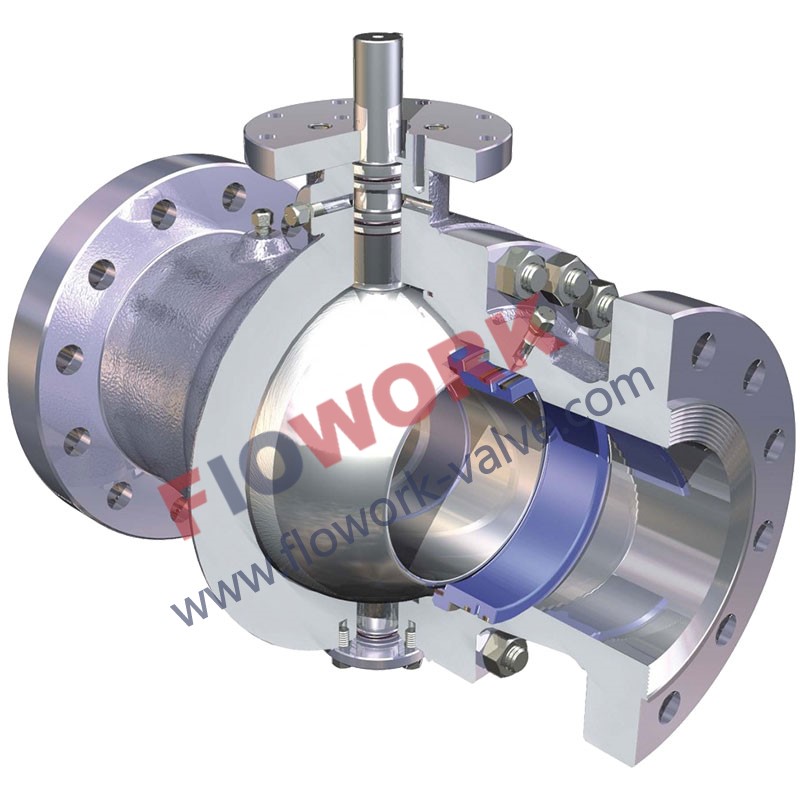

Fixed Ball Valve

Fixed Ball Valve

Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions:ANSI B16.25
Design and Manufacture:API 6D
Pressure Test:API598
Materials:WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800、C95500、A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22, ect.

Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded DimensionsANSI B16.25

Design and ManufactureAPI 6D

Pressure TestAPI598

MaterialsWCB WC6 WC9 CF8 CF8M CF3 CF3M CN7MLC1

LC2LC3LCBLCCMonel 20# Alloys4A5AC95800C95500A105 F304 F304L F316 F316LLF1 LF2LF3LF9 F51F53F11F22, ect.

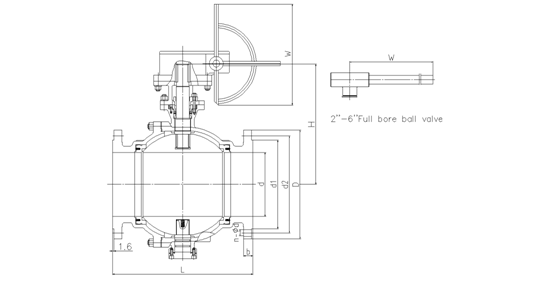

Class150   Fixed Ball Valve



NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

438

489

591

L(RF)

mm

178

190

203

229

394

457

533

610

686

762

864

914

1016

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

120.5

139.5

152.5

190.5

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

178

190

229

279

343

406

483

533

597

635

699

813

b

mm

16

18

19

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

Class300  Fixed Ball Valve

NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

432

483

584

L(RF)

mm

216

241

283

305

403

502

568

648

762

838

914

991

1143

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

200

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

165

190

210

254

318

381

445

521

584

648

711

775

914

b

mm

23

26

29

32

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-19

8-22

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

Class600  Fixed Ball Valve

NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

76

102

127

152

200

248

298

327

375

419

464

559

L(RF)

mm

292

356

432

508

559

660

787

838

889

991

1092

1194

1397

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

168.5

216

267

292

349

432

489

527

603

654

724

838

D

mm

165

210

273

330

356

419

508

559

603

686

743

813

940

b

mm

26

32

38

45

48

56

64

67

70

77

83

89

102

n-Фd

mm

8-19

8-22

8-25

8-29

12-29

12-32

16-35

20-35

20-38

20-41

20-44

24-44

24-52

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

1500

500

500

500

500

500

500

500

500

Class900  Fixed Ball Valve

NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

47

73

98

121

146

190

234

282

311

354

400

444

533

L(RF)

mm

368

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(RTJ)

mm

371

384

460

562

613

740

841

968

1039

1140

1232

1334

1568

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

165

190.5

235

279.4

317.5

393.7

469.9

533.4

558.8

615.9

685.8

749.3

901.7

D

mm

216

241

292

349

381

470

545

610

640

705

785

855

1040

b

mm

38.5

38.5

44.5

51

56

64

70

79.5

86

89

102

108

140

n-Фd

mm

8-26

8-26

8-32

8-35

12-32

12-39

16-39

20-39

20-42

20-45

20-51

20-54

20-67

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

500

500

500

500

500

500

500

500

500
