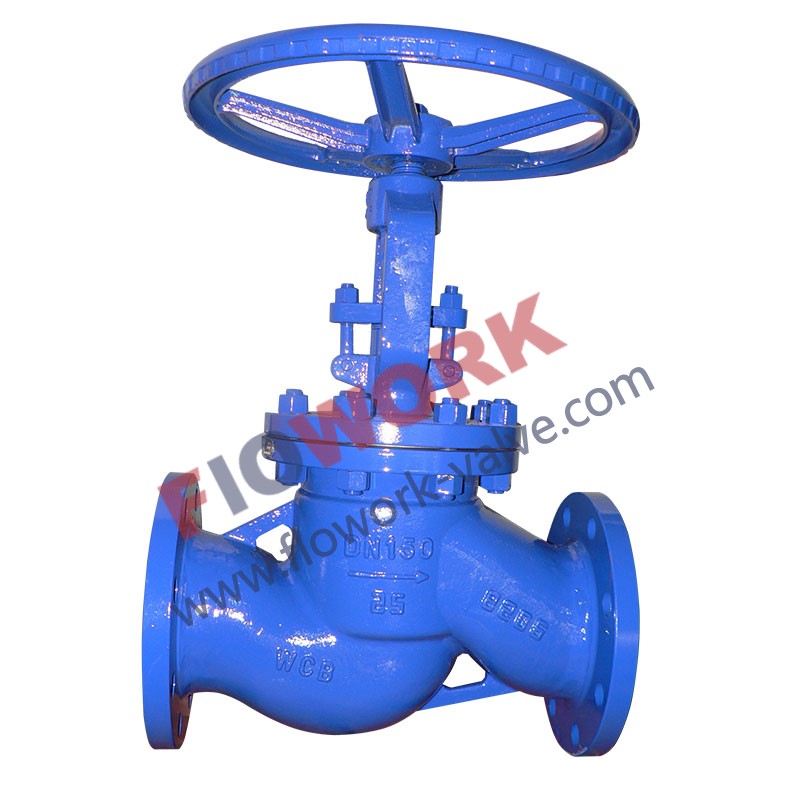

DIN3356 Golbe Valve

DIN3356 Golbe Valve

Face to Face Dimensions: EN558-1/DIN3202 F2
Flange end Dimension : EN1092-1/DIN2545
Design and Manufacture:EN 13709/DIN3356
Pressure Test:EN12266/DIN3230
Materials:WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

Application

Face to Face Dimensions: EN558-1/DIN3202 F2

Flange end Dimension : EN1092-1/DIN2545

Design and ManufactureEN 13709/DIN3356

Pressure TestEN12266/DIN3230

MaterialsWCB WC6 WC9 CF8 CF8M CF3 CF3M CN7MLC1

LC2LC3LCBLCCMonel20# Alloys4A5AC95800C95500, ect.

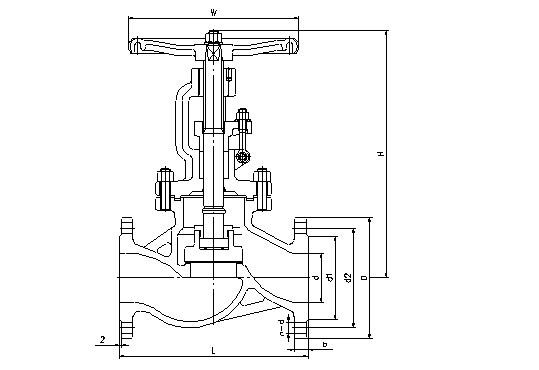

PN16   DIN3356 GolbeValve


DN



50

65

80

100

125

150

200

250

300

350

400

d

mm

50

63

76

100

125

150

200

250

300

336

387

L(RF)

mm

230

290

310

350

400

480

600

730

850

980

1100

d1

mm

102

122

138

158

188

212

268

320

378

438

490

d2

mm

125

145

160

180

210

240

295

355

410

470

525

D

mm

165

185

200

220

250

285

340

405

460

520

580

b

mm

18

18

20

20

22

22

24

26

28

30

32

n-Фd

mm

4-18

8-18

8-18

8-18

8-18

8-22

12-22

12-26

12-26

16-26

16-30

H

mm

305

354

402

437

496

541

699

815

914

1189

1350

W

mm

200

200

250

250

300

350

400

450

500

550

600

PN25   DIN3356 Golbe Valve

DN



50

65

80

100

125

150

200

250

300

350

400

d

mm

50

63

76

100

125

150

200

250

300

336

387

L(RF)

mm

230

290

310

350

400

480

600

730

850

980

1100

d1

mm

102

122

138

162

188

218

278

335

395

450

505

d2

mm

125

145

160

190

220

250

310

370

430

490

550

D

mm

165

185

200

235

270

300

360

425

485

555

620

b

mm

20

22

24

24

28

28

30

32

34

38

40

n-Фd

mm

4-18

8-18

8-18

8-22

8-26

8-26

12-26

12-30

16-30

16-33

16-36

H

mm

325

363

415

453

505

556

744

864

948

1269

1450

W

mm

200

200

250

300

350

400

450

500

550

600

600

PN40  DIN3356Golbe Valve

DN



50

65

80

100

125

150

200

250

300

350

400

d

mm

50

63

76

100

125

150

200

250

300

336

387

L(RF)

mm

230

290

310

350

400

480

600

730

850

980

1100

d1

mm

102

122

138

162

188

218

285

345

410

465

535

d2

mm

125

145

160

190

220

250

320

385

450

510

585

D

mm

165

185

200

235

270

300

375

460

515

580

660

b

mm

20

22

24

24

28

28

34

38

42

46

50

n-Фd

mm

4-18

8-18

8-18

8-22

8-26

8-26

12-30

12-33

16-33

16-36

16-39

H

mm

325

370

430

480

532

589

783

888

965

1285

1512

W

mm

200

200

250

300

350

400

450

500

550

600

600

PN63 DIN3356 Golbe Valve

DN



50

65

80

100

125

150

200

250

300

350

400

d

mm

50

63

76

100

125

150

200

250

300

336

387

L(RF)

mm

300

340

380

430

500

550

650

775

900

1025

1150

d1

mm

102

122

138

162

188

218

285

345

410

465

535

d2

mm

135

160

170

200

240

280

345

400

460

525

585

D

mm

180

205

215

250

295

345

415

470

530

600

670

b

mm

26

26

28

30

34

36

42

48

52

56

60

n-Фd

mm

4-22

8-22

8-22

8-28

8-30

8-33

12-36

12-36

16-36

16-39

16-42

H

mm

305

354

402

437

496

541

699

815

914

1189

1350

W

mm

200

200

250

250

300

350

400

450

500

550

600
