Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.FLOWORK manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.
Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.FLOWORK manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.
FLOWORK® mainly produces Bronze valves according to the standard of API 600. We call them API 600 Bronze valves.According to different design standards, FLOWORK® provides you DIN Bronze valves as well, for example, DIN Bronze Gate valves.
The characteristics of the FLOWORK Bronze valves are of corrosion resistance , oxidation resistance , electric resistance and clean sanitation. These features make Bronze valves special and incomparable to other metal material valves.
Application
Face to Face Dimensions: EN558-1/DIN3202 F7
Flange end Dimension : EN1092-1/DIN2545
Design and Manufacture:EN 1984/DIN3352
Pressure Test:EN12266/DIN3230
Materials:C95800、C95500、C95200、C95300、C95600、C61900、C63200,ect.

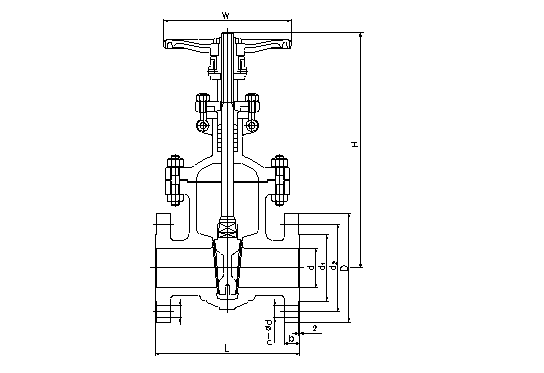

PN16 BronzeDIN Gate Valve
DN |
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
d |
mm |
50 |
63 |
76 |
100 |
125 |
150 |
200 |
250 |
300 |
336 |
387 |
438 |
488 |
590 |
L(RF) |
mm |
250 |
270 |
280 |
300 |
325 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
800 |
d1 |
mm |
102 |
122 |
138 |
158 |
188 |
212 |
268 |
320 |
378 |
438 |
490 |
550 |
610 |
725 |
d2 |
mm |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
355 |
410 |
470 |
525 |
586 |
650 |
770 |
D |
mm |
165 |
185 |
200 |
220 |
250 |
285 |
340 |
405 |
460 |
520 |
580 |
640 |
715 |
840 |
b |
mm |
18 |
18 |
20 |
20 |
22 |
22 |
24 |
26 |
28 |
30 |
32 |
40 |
44 |
54 |
n-Фd |
mm |
4-18 |
8-18 |
8-18 |
8-18 |
8-18 |
8-22 |
12-22 |
12-26 |
12-26 |
16-26 |
16-30 |
20-30 |
20-33 |
20-36 |
H |
mm |
417 |
452 |
530 |
607 |
720 |
790 |
885 |
1014 |
1190 |
1350 |
1460 |
1630 |
1800 |
2200 |
W |
mm |
200 |
200 |
250 |
280 |
280 |
300 |
350 |
400 |
450 |
500 |
500 |
500 |
600 |
600 |

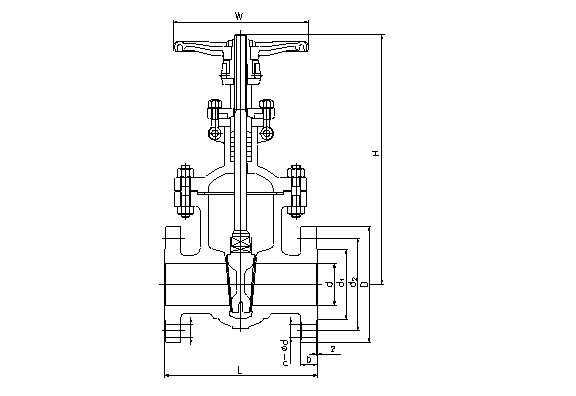

PN25 BronzeDIN Gate Valve
DN |
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
d |
mm |
50 |
63 |
76 |
100 |
125 |
150 |
200 |
250 |
300 |
336 |
387 |
438 |
488 |
590 |
L(RF) |
mm |
250 |
270 |
280 |
300 |
325 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
800 |
d1 |
mm |
102 |
122 |
138 |
162 |
188 |
218 |
278 |
335 |
395 |
450 |
505 |
555 |
615 |
720 |
d2 |
mm |
125 |
145 |
160 |
190 |
220 |
250 |
310 |
370 |
430 |
490 |
550 |
600 |
660 |
770 |
D |
mm |
165 |
185 |
200 |
235 |
270 |
300 |
360 |
425 |
485 |
555 |
620 |
670 |
730 |
845 |
b |
mm |
20 |
22 |
24 |
24 |
28 |
28 |
30 |
32 |
34 |
38 |
40 |
46 |
48 |
58 |
n-Фd |
mm |
4-18 |
8-18 |
8-18 |
8-22 |
8-26 |
8-26 |
12-26 |
12-30 |
16-30 |
16-33 |
16-36 |
20-36 |
20-36 |
20-39 |
H |
mm |
417 |
452 |
530 |
607 |
720 |
790 |
885 |
1014 |
1190 |
1350 |
1460 |
1630 |
1800 |
2200 |
W |
mm |
200 |
200 |
250 |
280 |
280 |
300 |
350 |
400 |
450 |
500 |
500 |
500 |
600 |
600 |
PN40 BronzeDIN Gate Valve
DN |
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
d |
mm |
50 |
63 |
76 |
100 |
125 |
150 |
200 |
250 |
300 |
336 |
387 |
431 |
482 |
584 |
L(RF) |
mm |
250 |
290 |
310 |
350 |
400 |
450 |
550 |
650 |
750 |
850 |
950 |
1050 |
1150 |
1350 |
d1 |
mm |
102 |
122 |
138 |
162 |
188 |
218 |
285 |
345 |
410 |
465 |
535 |
560 |
615 |
735 |
d2 |
mm |
125 |
145 |
160 |
190 |
220 |
250 |
320 |
385 |
450 |
510 |
585 |
610 |
670 |
795 |
D |
mm |
165 |
185 |
200 |
235 |
270 |
300 |
375 |
460 |
515 |
580 |
660 |
685 |
755 |
890 |
b |
mm |
20 |
22 |
24 |
24 |
28 |
28 |
34 |
38 |
42 |
46 |
50 |
57 |
57 |
72 |
n-Фd |
mm |
4-18 |
8-18 |
8-18 |
8-22 |
8-26 |
8-26 |
12-30 |
12-33 |
16-33 |
16-36 |
16-39 |
20-39 |
20-42 |
20-48 |
H |
mm |
404 |
456 |
604 |
607 |
720 |
780 |
875 |
1260 |
1480 |
1605 |
1788 |
1956 |
2168 |
2601 |
W |
mm |
200 |
200 |
250 |
280 |
300 |
350 |
400 |
450 |
500 |
500 |
600 |
650 |
750 |
800 |
PN63 BronzeDIN Gate Valve
DN |
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
d |
mm |
50 |
63 |
76 |
100 |
125 |
150 |
200 |
250 |
300 |
336 |
387 |
482 |
584 |
L(RF) |
mm |
250 |
290 |
310 |
350 |
400 |
450 |
550 |
650 |
750 |
850 |
950 |
1150 |
1350 |
d1 |
mm |
102 |
122 |
138 |
162 |
188 |
218 |
285 |
345 |
410 |
465 |
535 |
615 |
735 |
d2 |
mm |
135 |
160 |
170 |
200 |
240 |
280 |
345 |
400 |
460 |
525 |
585 |
705 |
820 |
D |
mm |
180 |
205 |
215 |
250 |
295 |
345 |
415 |
470 |
530 |
600 |
670 |
800 |
930 |
b |
mm |
26 |
26 |
28 |
30 |
34 |
36 |
42 |
48 |
52 |
56 |
60 |
68 |
76 |
n-Фd |
mm |
4-22 |
8-22 |
8-22 |
8-28 |
8-30 |
8-33 |
12-36 |
12-36 |
16-36 |
16-39 |
16-42 |
20-48 |
20-56 |
H |
mm |
404 |
456 |
604 |
607 |
720 |
780 |
875 |
1260 |
1480 |
1605 |
1788 |
2168 |
2601 |
W |
mm |
200 |
200 |
250 |
280 |
300 |
350 |
400 |
450 |
500 |
500 |
600 |
750 |
800 |
