Face to Face Dimensions: ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions:ANSI B16.25
Design and Manufacture:API 609
Pressure Test:API598
Materials:WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.
Application
Face to Face Dimensions: ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions:ANSI B16.25
Design and Manufacture:API 609
Pressure Test:API598
Materials:WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

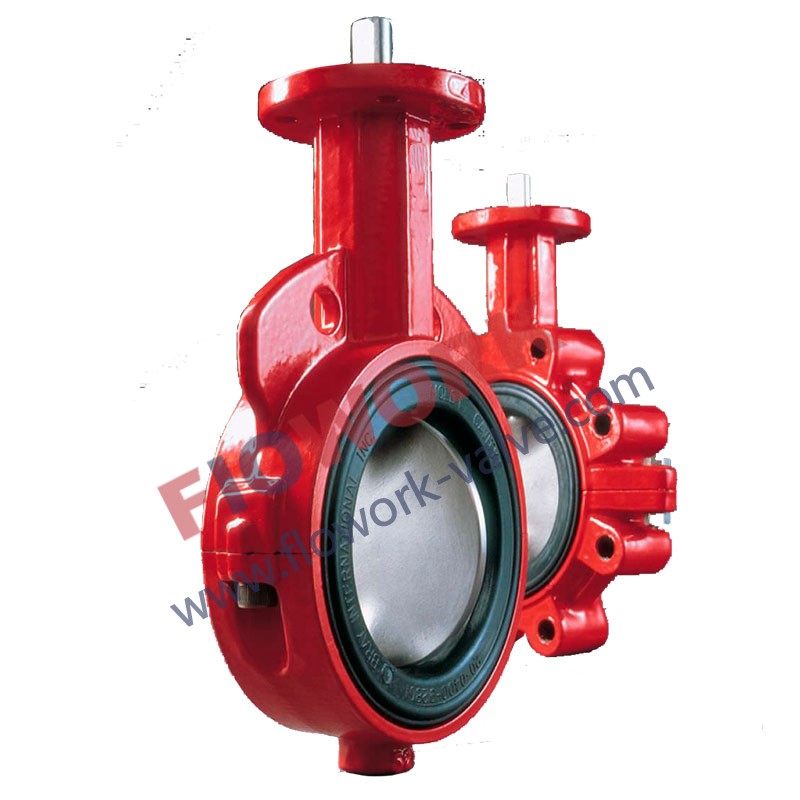

Class150 Wafer Butterfly Valves
NPS |
in |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
d |
mm |
51 |
76 |
102 |
152 |
203 |
254 |
305 |
337 |
387 |
438 |
489 |
591 |
L(RF) |
mm |
43 |
48 |
54 |
57 |
64 |
71 |
81 |
92 |
102 |
114 |
127 |
154 |
\L1(RF) |
mm |
108 |
114 |
127 |
140 |
152 |
165 |
178 |
190 |
216 |
222 |
229 |
267 |
d1 |
mm |
92 |
127 |
157 |
216 |
270 |
324 |
381 |
413 |
470 |
533 |
584 |
692 |
d2 |
mm |
120.5 |
152.5 |
190.5 |
241.5 |
298.5 |
362 |
432 |
476 |
540 |
578 |
635 |
749.5 |
D |
mm |
152 |
190 |
229 |
279 |
343 |
406 |
483 |
533 |
597 |
635 |
699 |
813 |
b |
mm |
16 |
19 |
24 |
26 |
29 |
31 |
32 |
35 |
37 |
40 |
43 |
48 |
n-Фd |
mm |
4-19 |
4-19 |
8-19 |
8-22 |
8-22 |
12-25 |
12-25 |
12-29 |
16-29 |
16-32 |
20-32 |
20-35 |
H |
mm |
225 |
255 |
285 |
332 |
386 |
427 |
498 |
510 |
540 |
585 |
642 |
693 |
H1 |
mm |
112 |
126 |
146 |
170 |
218 |
245 |
290 |
316 |
352 |
386 |
415 |
482 |
W |
mm |
300 |
300 |
300 |
300 |
300 |
300 |
500 |
500 |
600 |
600 |
600 |
600 |
Class300 Wafer Butterfly Valves
NPS |
in |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
d |
mm |
76 |
102 |
152 |
203 |
254 |
305 |
337 |
387 |
432 |
483 |
584 |
L(RF) |
mm |
48 |
54 |
59 |
73 |
83 |
92 |
117 |
133 |
149 |
159 |
181 |
\L1(RF) |
mm |
114 |
127 |
140 |
152 |
165 |
178 |
190 |
216 |
222 |
229 |
267 |
d1 |
mm |
127 |
157 |
216 |
270 |
324 |
381 |
413 |
470 |
533 |
584 |
692 |
d2 |
mm |
168.5 |
200 |
270 |
330 |
387.5 |
451 |
514.5 |
571.5 |
628.5 |
686 |
813 |
D |
mm |
210 |
254 |
318 |
381 |
445 |
521 |
584 |
648 |
711 |
775 |
914 |
b |
mm |
29 |
32 |
37 |
42 |
48 |
51 |
54 |
58 |
61 |
64 |
70 |
n-Фd |
mm |
8-22 |
8-22 |
12-22 |
12-25 |
16-29 |
16-32 |
20-32 |
20-35 |
24-35 |
24-35 |
24-41 |
H |
mm |
265 |
290 |
355 |
418 |
456 |
498 |
547 |
582 |
651 |
704 |
780 |
H1 |
mm |
130 |
150 |
185 |
236 |
273 |
313 |
338 |
392 |
420 |
465 |
532 |
W |
mm |
300 |
300 |
300 |
500 |
500 |
600 |
600 |
600 |
600 |
600 |
600 |
API Trim NO. Table
No of internal parts |
Seat ring or body |
Gate、disc 、ball or body |
Stem |
No of internal parts |
Seat ring or body |
Gate、disc 、ball or body |
Stem |
|
01 |
13Cr |
13Cr |
13Cr |
31 |
STELLITE |
321SS |
321SS |
|
02 |
304SS |
304SS |
304SS |
32 |
STELLITE |
STELLITE |
321SS |
|
03 |
310SS |
310SS |
310SS |
33 |
347SS |
347SS |
347SS |
|
04 |
HARD 13Cr |
HARD 13Cr |
13Cr |
34 |
STELLITE |
347SS |
347SS |
|
05 |
STELLITE |
STELLITE |
13Cr |
35 |
NICKEL ALLOY |
13Cr |
13Cr |
|
06 |
Cu-Ni |
13Cr |
13Cr |
36 |
A105/PTFE |
A105+ENP |
A105+ENP |
|
07 |
13Cr |
HARD 13Cr |
13Cr |
37 |
A105/PTFE |
WCB+ENP |
A105+ENP |
|
08 |
STELLITE |
13Cr |
13Cr |
38 |
13Cr/PTFE |
13Cr |
13Cr |
|
09 |
Cu-Ni |
Cu-Ni |
Cu-Ni |
39 |
304SS/PTFE |
304SS |
304SS |
|
10 |
316SS |
316SS |
316SS |
40 |
316SS/PTFE |
316SS |
316SS |
|
11 |
Cu-Ni |
STELLITE |
Cu-Ni |
41 |
A105/RPTFE |
A105+ENP |
A105+ENP |
|
12 |
STELLITE |
316SS |
316SS |
42 |
A105/RPTFE |
WCB+ENP |
A105+ENP |
|
13 |
ALLOY 20 |
ALLOY 20 |
ALLOY 20 |
43 |
13Cr/RPTFE |
13Cr |
13Cr |
|
14 |
STELLITE |
ALLOY 20 |
ALLOY 20 |
44 |
304SS/RPTFE |
304SS |
304SS |
|
15 |
STELLITE |
STELLITE |
304SS |
45 |
316SS/RPTFE |
316SS |
316SS |
|
16 |
STELLITE |
STELLITE |
316SS |
46 |
A105/NYLON |
A105+ENP |
A105+ENP |
|
17 |
STELLITE |
STELLITE |
347SS |
47 |
A105/NYLON |
WCB+ENP |
A105+ENP |
|
18 |
STELLITE |
STELLITE |
ALLOY 20 |
48 |
A105/NYLON |
304SS |
304SS |
|
19 |
MONEL |
MONEL |
MONEL |
49 |
A105/NYLON |
316SS |
316SS |
|
20 |
BRONZE |
BRONZE |
13Cr |
50 |
13Cr/NYLON |
13Cr |
13Cr |
|
21 |
HASTELLOY B |
HASTELLOY B |
HASTELLOY B |
51 |
304SS/NYLON |
304SS |
304SS |
|
22 |
|
HASTELLOY C |
HASTELLOY C |
52 |
316SS/NYLON |
316SS |
316SS |
|
23 |
STELLITE |
304SS |
304SS |
53 |
A105/PEEK |
A105+ENP |
A105+ENP |
|
24 |
304LSS |
304LSS |
304LSS |
54 |
A105/PEEK |
WCB+ENP |
A105+ENP |
|
25 |
STELLITE |
304LSS |
304LSS |
55 |
13Cr/PEEK |
13Cr |
13Cr |
|
26 |
STELLITE |
STELLITE |
304LSS |
56 |
304SS/PEEK |
304SS |
304SS |
|
27 |
316LSS |
316LSS |
316LSS |
57 |
316SS/PEEK |
316SS |
316SS |
|
28 |
STELLITE |
316LSS |
316LSS |
|
|
|
|
|
29 |
STELLITE |
STELLITE |
316LSS |
|
|
|
||
30 |
321SS |
321SS |
321SS |
|
|
|
|
Note:please indicate it directly in the order for the internal part’smaterial uncovered in the table
