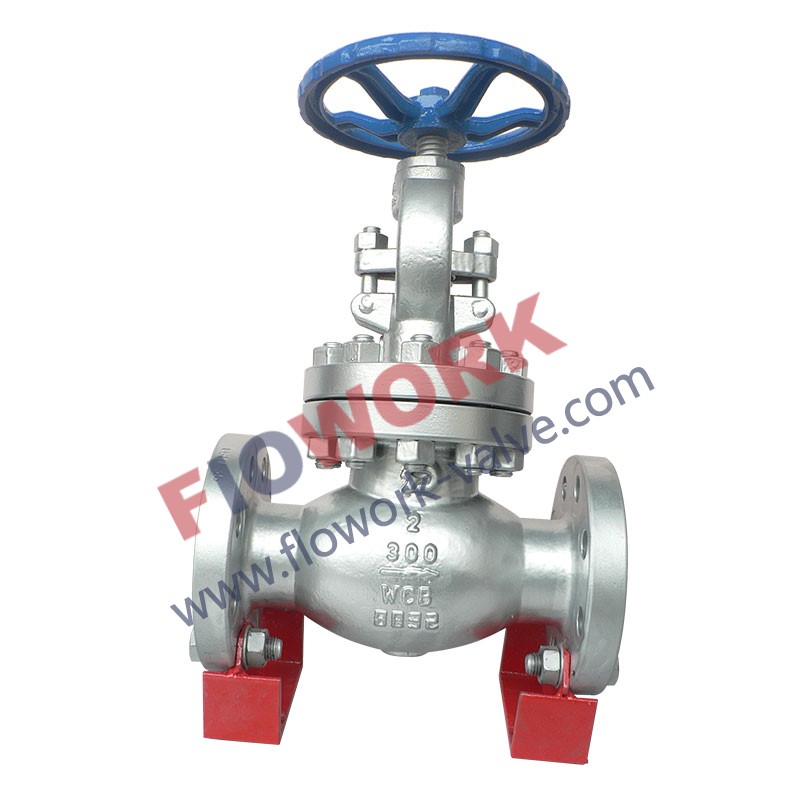

Nowadays, people pay much attention to environmental protection. We Sedelon also take it into consideration. Low Emission Globe valves /Low Leakage Globe valves can effectively prevent the medium leakage and emission, thus being good for the environment. Equipped with Fugitive Emission Test Certificate ISO 15848-1:2006, Sedelon manufactures Fugitive Emission Globe valves in order to make a contribution to protecting the environment.
Nowadays, people pay much attention to environmental protection. We Sedelon also take it into consideration. Low Emission Globe valves /Low Leakage Globe valves can effectively prevent the medium leakage and emission, thus being good for the environment. Equipped with Fugitive Emission Test Certificate ISO 15848-1:2006, Sedelon manufactures Fugitive Emission Globe valves in order to make a contribution to protecting the environment.
Application
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions:ANSI B16.25
Design and Manufacture:BS1873
Pressure Test:API598
Materials:WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

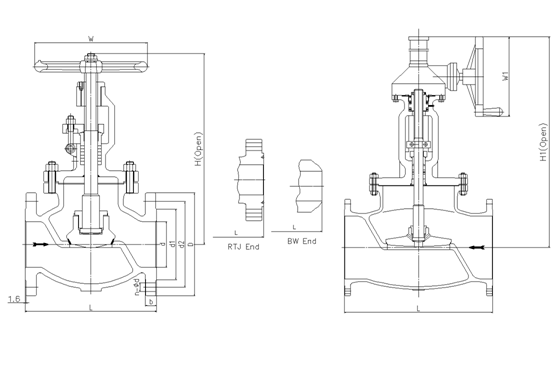

Class150 Low Emission Globe valve
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
d |
mm |
51 |
64 |
76 |
102 |
127 |
152 |
203 |
254 |
305 |
L(RF) |
mm |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
L(BW) |
mm |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
L(RTJ) |
mm |
216 |
229 |
254 |
305 |
369 |
419 |
508 |
635 |
711 |
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
d2 |
mm |
120.5 |
139.5 |
152.5 |
190.5 |
216 |
241.5 |
298.5 |
362 |
432 |
D |
mm |
152 |
178 |
190 |
229 |
254 |
279 |
343 |
406 |
483 |
b |
mm |
16 |
18 |
19 |
24 |
24 |
26 |
29 |
31 |
32 |
n-Фd |
mm |
4-19 |
4-19 |
4-19 |
8-19 |
8-22 |
8-22 |
8-22 |
12-25 |
12-25 |
H |
mm |
330 |
360 |
390 |
445 |
480 |
520 |
600 |
773 |
880 |
H1 |
mm |
|
|
|
|
|
556 |
658 |
805 |
955 |
W |
mm |
200 |
200 |
250 |
300 |
350 |
350 |
500 |
500 |
550 |
W1 |
mm |
|
|
|
|
|
310 |
310 |
460 |
460 |

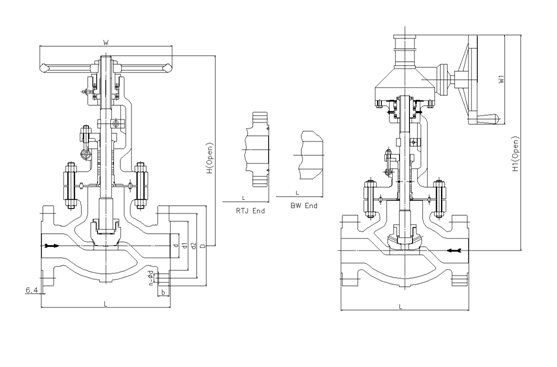

Class300 Low Emission Globe valve
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
d |
mm |
51 |
64 |
76 |
102 |
127 |
152 |
203 |
254 |
305 |
L(RF) |
mm |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
L(BW) |
mm |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
L(RTJ) |
mm |
283 |
308 |
333 |
371 |
416 |
460 |
575 |
638 |
727 |
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
d2 |
mm |
127 |
149 |
168.5 |
200 |
235 |
270 |
330 |
387.5 |
451 |
D |
mm |
165 |
190 |
210 |
254 |
279 |
318 |
381 |
445 |
521 |
b |
mm |
23 |
26 |
29 |
32 |
35 |
37 |
42 |
48 |
51 |
n-Фd |
mm |
8-19 |
8-22 |
8-22 |
8-22 |
8-22 |
12-22 |
12-25 |
16-29 |
16-32 |
H |
mm |
385 |
420 |
440 |
515 |
580 |
660 |
900 |
950 |
1030 |
H1 |
mm |
|
|
|
|
|
690 |
950 |
990 |
1080 |
W |
mm |
250 |
250 |
300 |
350 |
450 |
500 |
500 |
550 |
550 |
W1 |
mm |
|
|
|
|
|
310 |
460 |
460 |
460 |

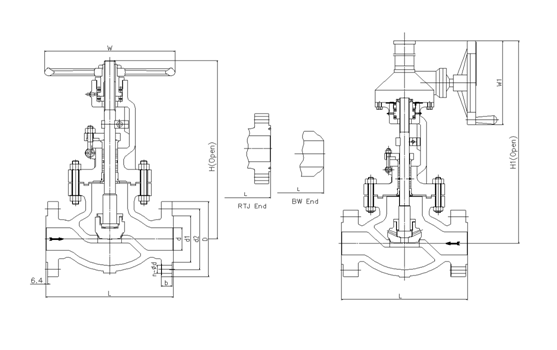

Class600 Low Emission Globe valve
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
d |
mm |
51 |
64 |
76 |
102 |
127 |
152 |
200 |
248 |
298 |
L(RF) |
mm |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
L(BW) |
mm |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
L(RTJ) |
mm |
295 |
333 |
359 |
435 |
511 |
562 |
664 |
791 |
841 |
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
d2 |
mm |
127 |
149 |
168.5 |
216 |
267 |
292 |
349 |
432 |
489 |
D |
mm |
165 |
190 |
210 |
273 |
330 |
356 |
419 |
508 |
559 |
b |
mm |
26 |
29 |
32 |
38 |
45 |
48 |
56 |
64 |
67 |
n-Фd |
mm |
8-19 |
8-22 |
8-22 |
8-25 |
8-29 |
12-29 |
12-32 |
16-35 |
20-35 |
H |
mm |
360 |
410 |
465 |
545 |
625 |
785 |
930 |
|
|
H1 |
mm |
|
|
|
575 |
660 |
820 |
960 |
1040 |
1280 |
W |
mm |
250 |
300 |
350 |
400 |
500 |
550 |
650 |
|
|
W1 |
mm |
|
|
|
310 |
310 |
460 |
460 |
610 |
610 |

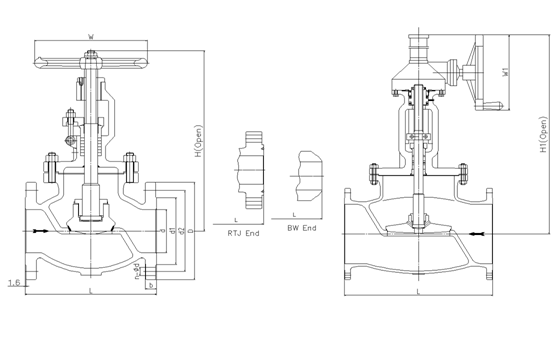

Class900 Low Emission Globe valve
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
d |
mm |
47 |
57 |
73 |
98 |
121 |
146 |
190 |
234 |
L(RF) |
mm |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
838 |
L(BW) |
mm |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
838 |
L(RTJ) |
mm |
371 |
422 |
384 |
460 |
562 |
613 |
740 |
841 |
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
d2 |
mm |
165 |
190.5 |
190.5 |
235 |
279.4 |
317.5 |
393.7 |
469.9 |
D |
mm |
216 |
244 |
241 |
292 |
349 |
381 |
470 |
545 |
b |
mm |
38.5 |
41.5 |
38.5 |
44.5 |
51 |
56 |
64 |
70 |
n-Фd |
mm |
8-26 |
8-29 |
8-26 |
8-32 |
8-35 |
12-32 |
12-39 |
16-39 |
H |
mm |
480 |
520 |
564 |
685 |
780 |
950 |
|
|
H1 |
mm |
|
|
630 |
720 |
840 |
1015 |
1100 |
1185 |
W |
mm |
350 |
350 |
400 |
450 |
550 |
650 |
|
|
W1 |
mm |
|
|
310 |
310 |
460 |
460 |
610 |
610 |
Class1500 Low Emission Globe valve
NPS |
in |
2 |
2 1/2 |
3 |
4 |
5 |
6 |
8 |
d |
mm |
47 |
57 |
70 |
92 |
111 |
136 |
178 |
L(RF) |
mm |
368 |
419 |
470 |
546 |
673 |
705 |
832 |
L(BW) |
mm |
368 |
419 |
470 |
546 |
673 |
705 |
832 |
L(RTJ) |
mm |
371 |
422 |
473 |
549 |
676 |
711 |
841 |
d1 |
mm |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
d2 |
mm |
165 |
190.5 |
203.2 |
241.3 |
292.1 |
317.5 |
393.7 |
D |
mm |
216 |
244 |
267 |
311 |
375 |
394 |
483 |
b |
mm |
38.5 |
41.5 |
48 |
54 |
73.5 |
83 |
92.9 |
n-Фd |
mm |
8-26 |
8-29 |
8-32 |
8-35 |
8-42 |
12-39 |
12-45 |
H |
mm |
592 |
660 |
692 |
|
|
|
|
H1 |
mm |
|
|
|
907 |
950 |
1015 |
1145 |
W |
mm |
350 |
400 |
500 |
|
|
|
|
W1 |
mm |
|
|
|
460 |
610 |
610 |
610 |
API Trim NO. Table
No of internal parts |
Seat ring or body |
Gate、disc 、ball or body |
Stem |
No of internal parts |
Seat ring or body |
Gate、disc 、ball or body |
Stem |
|
01 |
13Cr |
13Cr |
13Cr |
31 |
STELLITE |
321SS |
321SS |
|
02 |
304SS |
304SS |
304SS |
32 |
STELLITE |
STELLITE |
321SS |
|
03 |
310SS |
310SS |
310SS |
33 |
347SS |
347SS |
347SS |
|
04 |
HARD 13Cr |
HARD 13Cr |
13Cr |
34 |
STELLITE |
347SS |
347SS |
|
05 |
STELLITE |
STELLITE |
13Cr |
35 |
NICKEL ALLOY |
13Cr |
13Cr |
|
06 |
Cu-Ni |
13Cr |
13Cr |
36 |
A105/PTFE |
A105+ENP |
A105+ENP |
|
07 |
13Cr |
HARD 13Cr |
13Cr |
37 |
A105/PTFE |
WCB+ENP |
A105+ENP |
|
08 |
STELLITE |
13Cr |
13Cr |
38 |
13Cr/PTFE |
13Cr |
13Cr |
|
09 |
Cu-Ni |
Cu-Ni |
Cu-Ni |
39 |
304SS/PTFE |
304SS |
304SS |
|
10 |
316SS |
316SS |
316SS |
40 |
316SS/PTFE |
316SS |
316SS |
|
11 |
Cu-Ni |
STELLITE |
Cu-Ni |
41 |
A105/RPTFE |
A105+ENP |
A105+ENP |
|
12 |
STELLITE |
316SS |
316SS |
42 |
A105/RPTFE |
WCB+ENP |
A105+ENP |
|
13 |
ALLOY 20 |
ALLOY 20 |
ALLOY 20 |
43 |
13Cr/RPTFE |
13Cr |
13Cr |
|
14 |
STELLITE |
ALLOY 20 |
ALLOY 20 |
44 |
304SS/RPTFE |
304SS |
304SS |
|
15 |
STELLITE |
STELLITE |
304SS |
45 |
316SS/RPTFE |
316SS |
316SS |
|
16 |
STELLITE |
STELLITE |
316SS |
46 |
A105/NYLON |
A105+ENP |
A105+ENP |
|
17 |
STELLITE |
STELLITE |
347SS |
47 |
A105/NYLON |
WCB+ENP |
A105+ENP |
|
18 |
STELLITE |
STELLITE |
ALLOY 20 |
48 |
A105/NYLON |
304SS |
304SS |
|
19 |
MONEL |
MONEL |
MONEL |
49 |
A105/NYLON |
316SS |
316SS |
|
20 |
BRONZE |
BRONZE |
13Cr |
50 |
13Cr/NYLON |
13Cr |
13Cr |
|
21 |
HASTELLOY B |
HASTELLOY B |
HASTELLOY B |
51 |
304SS/NYLON |
304SS |
304SS |
|
22 |
|
HASTELLOY C |
HASTELLOY C |
52 |
316SS/NYLON |
316SS |
316SS |
|
23 |
STELLITE |
304SS |
304SS |
53 |
A105/PEEK |
A105+ENP |
A105+ENP |
|
24 |
304LSS |
304LSS |
304LSS |
54 |
A105/PEEK |
WCB+ENP |
A105+ENP |
|
25 |
STELLITE |
304LSS |
304LSS |
55 |
13Cr/PEEK |
13Cr |
13Cr |
|
26 |
STELLITE |
STELLITE |
304LSS |
56 |
304SS/PEEK |
304SS |
304SS |
|
27 |
316LSS |
316LSS |
316LSS |
57 |
316SS/PEEK |
316SS |
316SS |
|
28 |
STELLITE |
316LSS |
316LSS |
|
|
|
|
|
29 |
STELLITE |
STELLITE |
316LSS |
|
|
|
||
30 |
321SS |
321SS |
321SS |
|
|
|
|
Note:please indicate it directly in the order for the internal part’smaterial uncovered in the table
